+Pro/ENGINEER Advanced Heavy User Training

Course Duration: 16 Hours

Tuition: $1200 USD

Overview: This is a fully customized course and can come with custom training materails or videos (separate quote). Often there are only one students in this workshop and is always customized ahead of time. This course will not be listed in the training schedule. Below is a short list that your group may want covered. Enjoy small class sizes!

Prerequisites: 1,500 hours minimum experience with Pro/ENGINEER or 700 Heavy User Training

Topics:

• Advanced Pro/SURFACE
• Advanced Pro/ENGINEER
• Advanced Pro/PROGRAM
• Top down modeling, master model and skeleton techniques
• Pro/ENGINEER to Pro/CONCEPT and/or transfer
• Pro/ENGINEER to Alias transfers
• Edit definition or redefine functions
• Tips and techniques for growing into advanced users
• Discuss in great detail the top down design approach
• Force assumptions, replace and rotate in sketcher
• Enhanced study of sketcher
• Force patterns to follow complex curves
• Pattern groups to follow curves
• Create advanced sweep
• Blend features
• Student may also receive an introduction to Pro/SURFACE & Pro/PROGRAM.
• Table, repeat regions for automatic bill of material generation.
• Build gears in a robust and fast uncomplicated way
• Gears: heliacal gear, spur and pinion gears
• Learn to utilize driving actions ACME screw gears
• Create profile producing equations
• Make gears using parameter tables and relations
• Convert Cartesians to spherical coordinates in sketcher to use later in equations

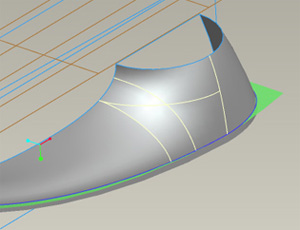

Example of a difficult pattern.

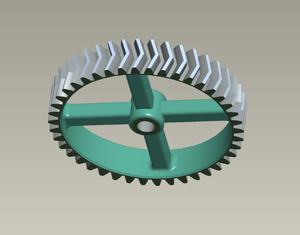

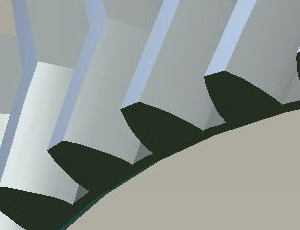

Part of a gear workshop
